Description

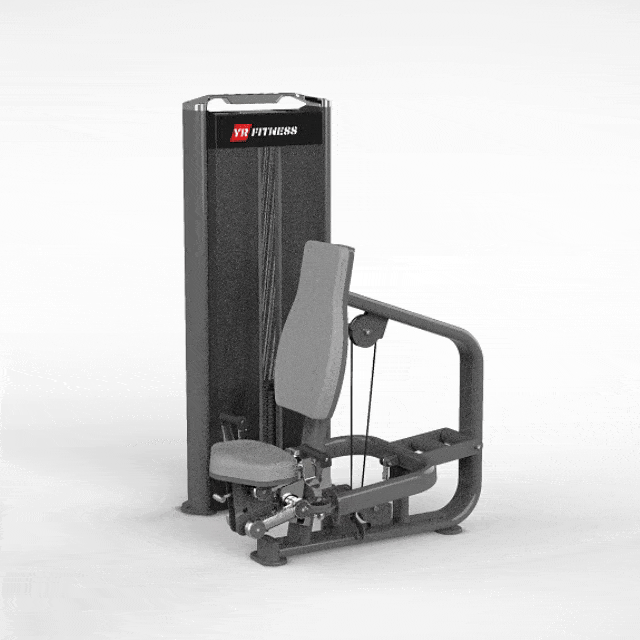

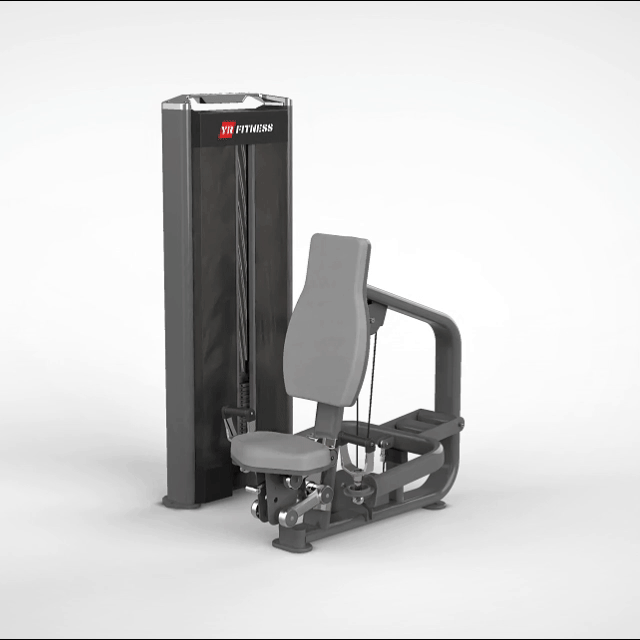

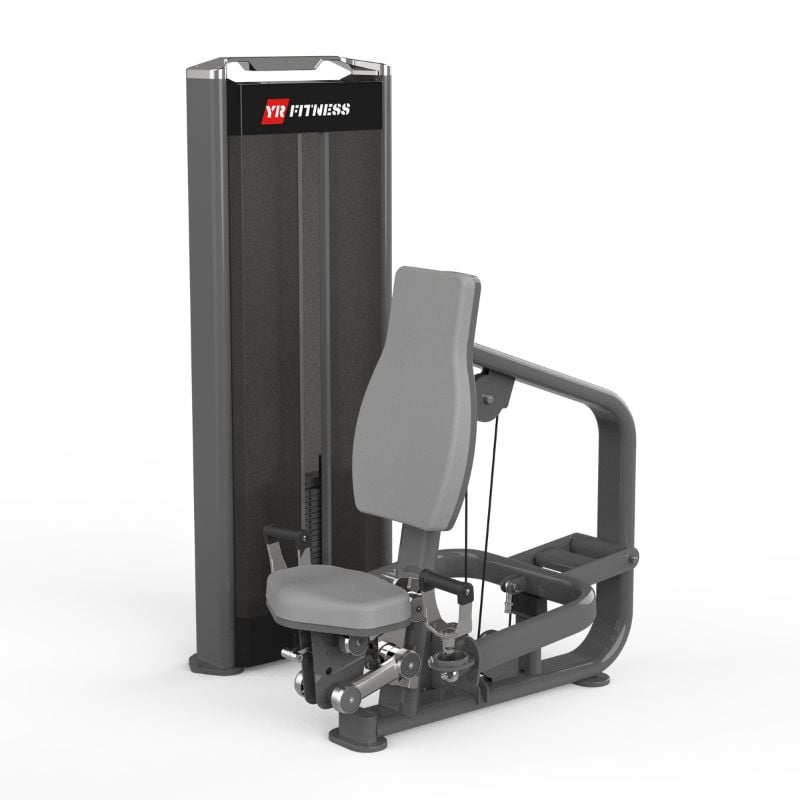

The Pull Up Shoulder Machine is specially designed for users who experience pain or have limitations with traditional shoulder press exercises. By modifying the training posture, it enables effective shoulder workouts while minimizing stress on injured or sensitive joints. Its controlled and compact movement helps protect the shoulder during rehabilitation or preventive training.
Structural Integrity and Materials
- Main Frame: 150×50×3.0 mm semi-elliptical pipe
- Functional Area Frame: 50×120×3.0 mm flat oval pipe
- Movement Arm: 40×80×3.0 mm pipe
- Joint Pipe: 50×100×3.0 mm flat oval pipe
- Material: All structural parts are made from Q235 qualified steel
Ergonomic and Safe Seat Design
- Seat Construction: Aluminum alloy arm with parallelogram structure
- Adjustment Mechanism: Torsion spring system allows easy and secure seat adjustments
- Upholstery: High-density foam with furniture-grade PU leather
- Protection: Integral ABS guard cover for added safety and durability
High-Performance Components
- Pulley System: Made from POM material and precision-machined with CNC technology
- Bearings: Customized high-quality bearings built to endure high-intensity, long-term use
- Cable Routing: Internally routed cables maintain a clean and organized machine layout
- Cable Specifications:
- Japan-made coated wire
- 6×19+1×75 strand configuration
- Withstands up to 1400 kg of tensile strength
Durable and Protective Shroud
- Full Shroud: Made from 4 mm thick ABS virgin material
- Features: Durable, eco-friendly, and provides full protection during use
Specs:
- N.W.: 190kgs
- G.W.: 200kgs
- Installation size: 1125*1157*1620mm
- Weight stacks：70kg-14pcs
