Description

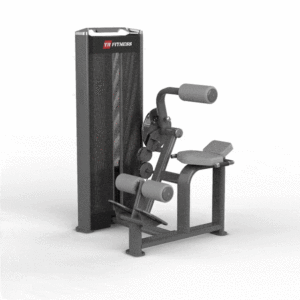

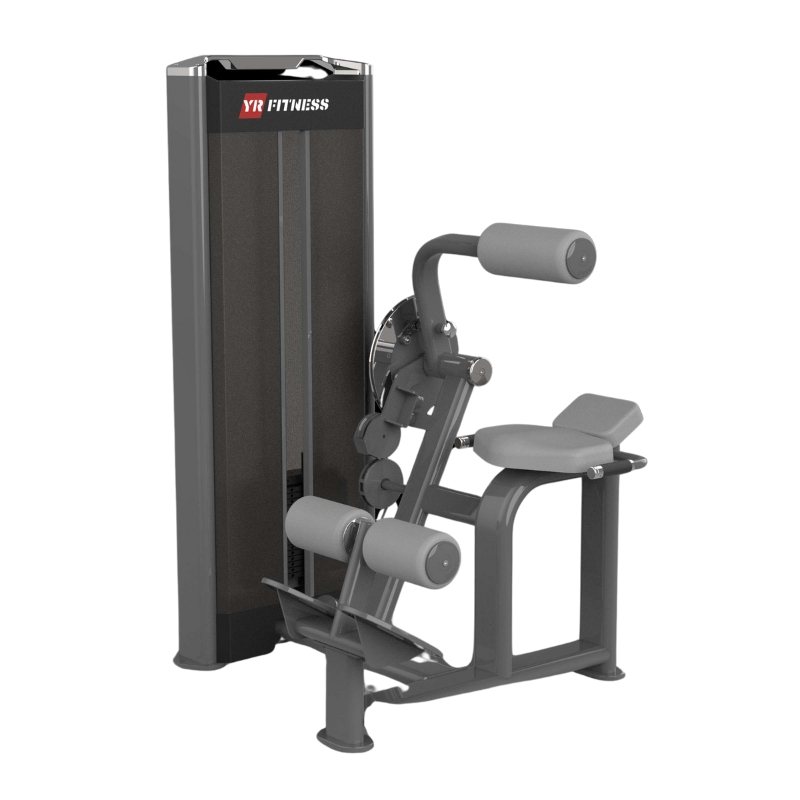

The Ab Crunch/Back Extension C4D08 is a dual-function machine designed to strengthen both the abdominal muscles and lower back. With a compact design and smooth movement, it provides efficient training for core stability and spinal support, making it ideal for any gym setting.
Key Features
Two-in-One Core Training
- Combines ab crunch and back extension functions in one space-saving unit
- Targets both front and rear core muscles for balanced development
- Suitable for a wide range of users and workout programs
Durable Frame and Materials
- Main frame: 150×50×3.0 mm flat elliptical pipe
- Functional area: 120×50×3.0 mm flat oval pipe
- Movement arm: 80×40×3.0 mm pipe
- Joint pipe: 50×100×3.0 mm flat oval pipe
- All pipes use Q235 grade steel for long-lasting strength
Comfortable and Safe Design
- Cushion filled with MC high resilience foam for user comfort
- Covered with high-grade PU leather for a clean, professional finish
- Full shroud made of 4 mm thick ABS virgin material for added safety and durability
Performance Components
Smooth Motion and High Strength
- Wire cable imported from Japan, 7×19 coated wire rated to withstand 1400 kg tension
- Built to handle high-intensity, repeated use in commercial environments
Technical Specifications
- Net Weight (N.W.): 198 kg
- Gross Weight (G.W.): 208 kg
- Installation Size: 1130 × 1039 × 1620 mm
- Weight Stack: 70 kg (14 pcs)
