Description

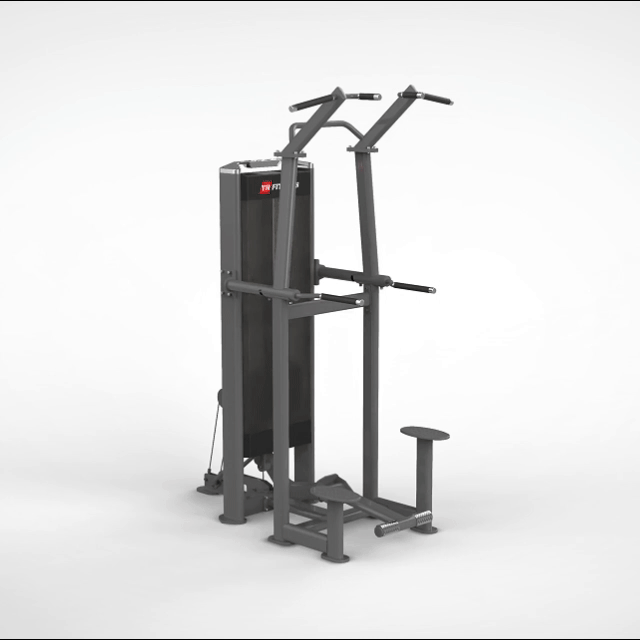

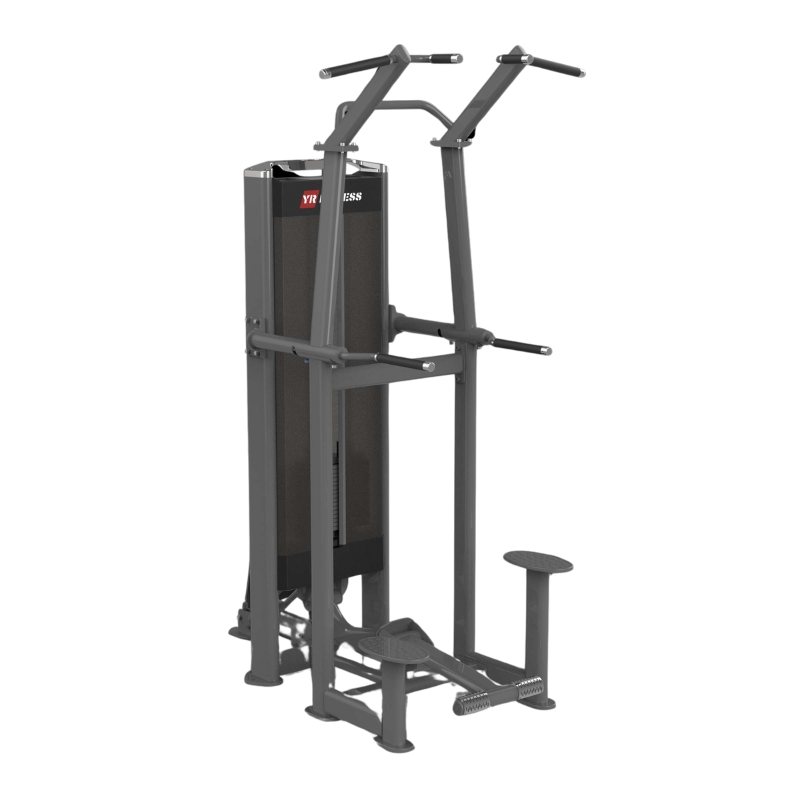

The C4D07 Standing Assisted Dip/Chin-Up machine is a versatile tool for developing upper body strength. It supports users by reducing the amount of body weight lifted during dips and chin-ups, making these challenging exercises more accessible. This is ideal for beginners and anyone working toward unassisted performance.
Key Features
Adjustable Assistance for Effective Training
- Assists with dip and chin-up movements
- Helps users progress toward unassisted exercises
- Suitable for various fitness levels, especially beginners
Strong and Reliable Frame
- Main frame: 150×50×3.0 mm flat elliptical pipe
- Functional area: 120×50×3.0 mm flat oval pipe
- Movement arm: 80×40×3.0 mm
- Joint pipe: 50×100×3.0 mm flat oval pipe
- All pipes are made from Q235-grade steel
Comfortable and Durable Design
- Full shroud made of 4 mm thick ABS virgin material
- Cushion filled with MC high-resilience foam and covered with high-grade PU leather
High-Quality Cable System
- Imported 7×19 coated wire cable from Japan
- Withstands tension up to 1400 kg for safe and smooth operation
Specifications
Technical Details
- Model: C4D07
- Net Weight: 250 kg
- Gross Weight: 264 kg
- Installation Size: 1000 × 1200 × 2250 mm
- Weight Stack: 80 kg (16 pcs)
