Description
Features:

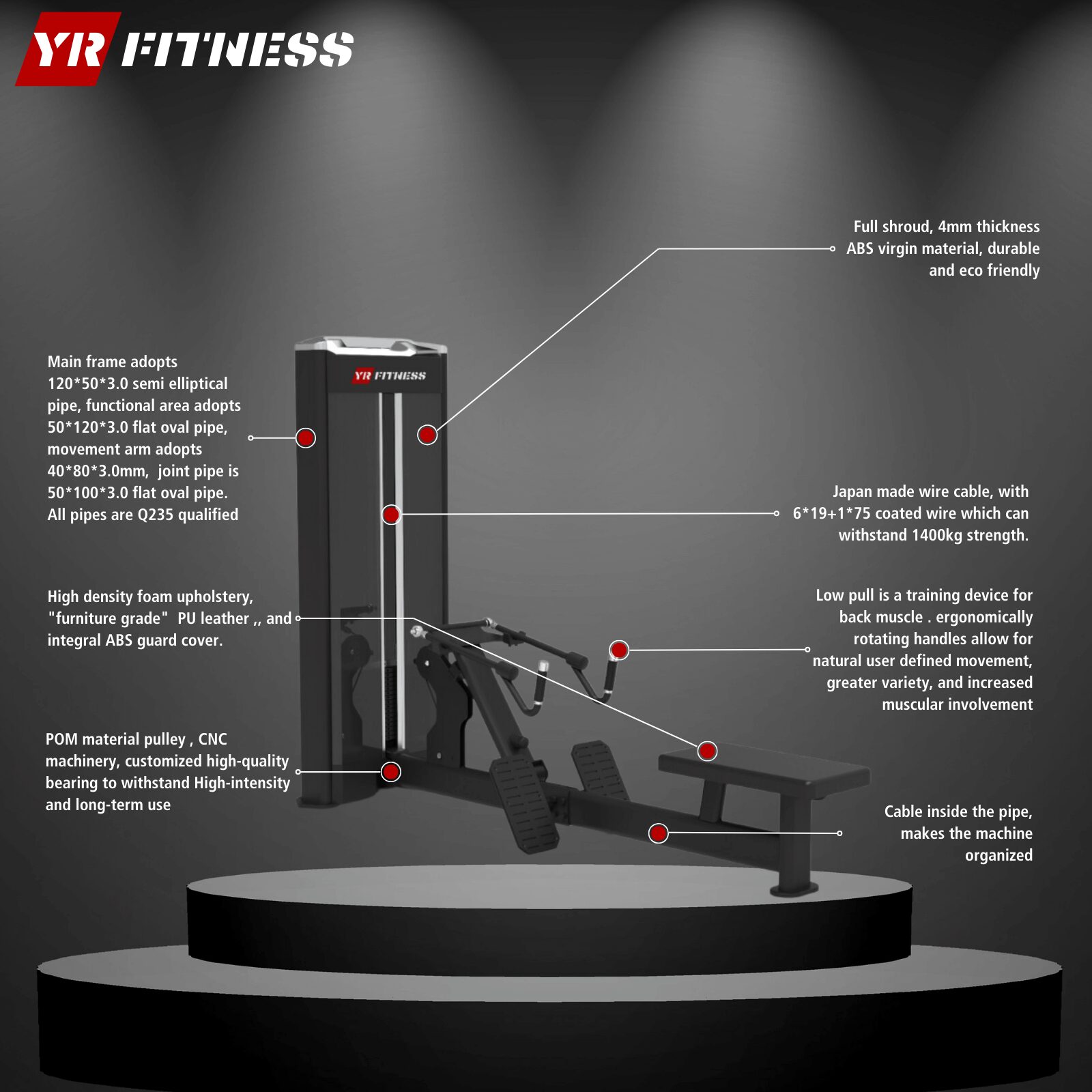

The Low Pull is a training device designed for back muscle development. The ergonomically rotating handles allow for natural, user-defined movement, offering greater variety and increased muscular involvement.
Frame Specifications
- Main frame: 75 *118 * 3.0 mm semi-elliptical pipe
- Functional area: 50 *120 * 3.0 mm flat oval pipe
- Movement arm: 40 *80 *3.0 mm
- Joint pipe: 50 *100 *3.0 mm flat oval pipe
- All pipes are Q235 qualified
Upholstery and Guard Cover
The seat features high-density foam upholstery, covered with furniture-grade PU leather, and includes an integral ABS guard cover for durability and comfort.
Pulley System
The pulley system is made of POM material, precision-machined using CNC technology, and includes customized high-quality bearings to withstand high-intensity, long-term use.
Cable and Wiring
The cable is routed inside the pipes for a clean and organized appearance. The Japan-made wire cable (6 x 19 + 1 x 75 coated wire) can withstand up to 1400 kg of tension.
Shroud Material
The full shroud is made from 4 mm thick ABS virgin material, ensuring durability and eco-friendliness.
Specs:
N.W.:180kgs/397lbs
G.W.:190kgs/419lbs
Installation size: 746*2046*1660mm/ 29*81*65in
Weight stacks: 80kg-16pcs/176lbs-16pcs
