Does your treadmill make a knocking sound while you walk or run? The noise usually points to a mechanical part that needs checking.
The most common causes are the belt, rollers, drive system, loose parts, or worn bearings. Some light thumping can be normal, but a new or louder knock should not be ignored.
As a Machinery & Structural Engineering Expert at YR Fitness, I work closely with treadmill frames, rollers, motors, and drive systems. This hands-on knowledge helps me identify which parts are most likely to cause unusual treadmill noises.
Below, I’ll show you seven common causes and what to look for with each one.

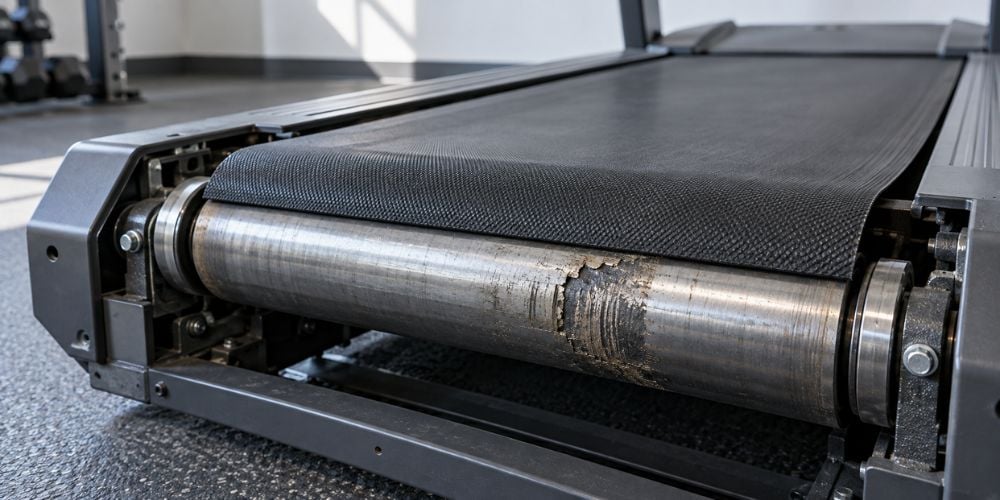

1. A Worn or Damaged Roller
Your treadmill uses front and rear rollers to keep the walking belt moving.
If a roller becomes worn, damaged, or uneven, it may produce a repeating knock every time it rotates. The noise may also get faster when you increase the treadmill speed.
Watch for:
- Vibration near the front or rear roller
- Uneven belt movement
- Knocking that speeds up with the treadmill
- Rough roller movement
Is every thump a problem? Not necessarily.
Horizon Fitness explains in its treadmill noise guide that treadmills can naturally produce some thumping as the belt travels over the rollers, especially when the machine is new. It also recommends checking for loose hardware or foreign objects when you can physically feel the noise.
I usually listen to the rhythm first. A steady knock that speeds up with the machine makes rotating components worth checking.

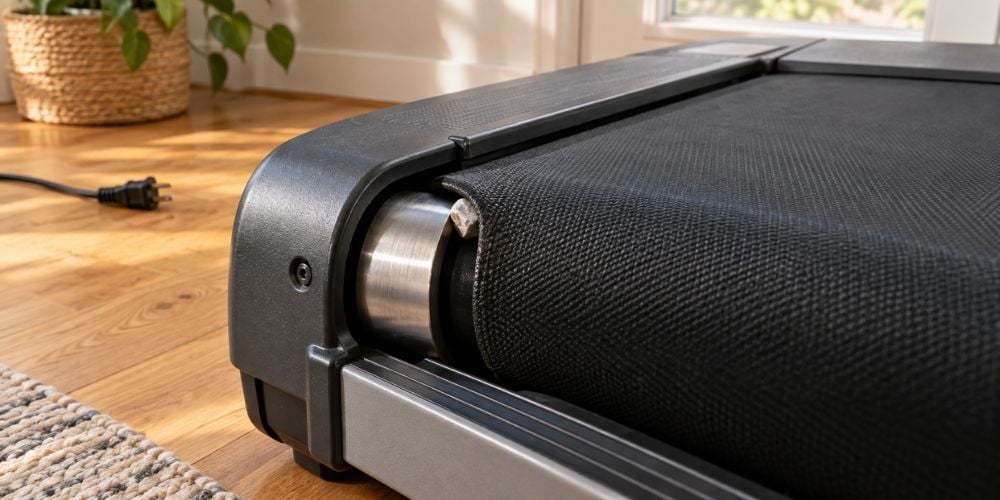

2. Something Is Stuck in the Belt or Roller Area
Sometimes the cause is much simpler than a damaged motor or roller.
A small object can become trapped underneath the walking belt or around a roller. Each time the belt passes that spot, you may hear a knock, tap, or click.
Look for:
- Small stones
- Screws
- Plastic pieces
- Dirt buildup
- Pieces of damaged belt material
Turn the treadmill off and unplug it before checking around the belt or rollers.
Can you feel the knock under your feet? If yes, debris or a loose part should be high on your list.
Remove anything that clearly does not belong there before testing the treadmill again.

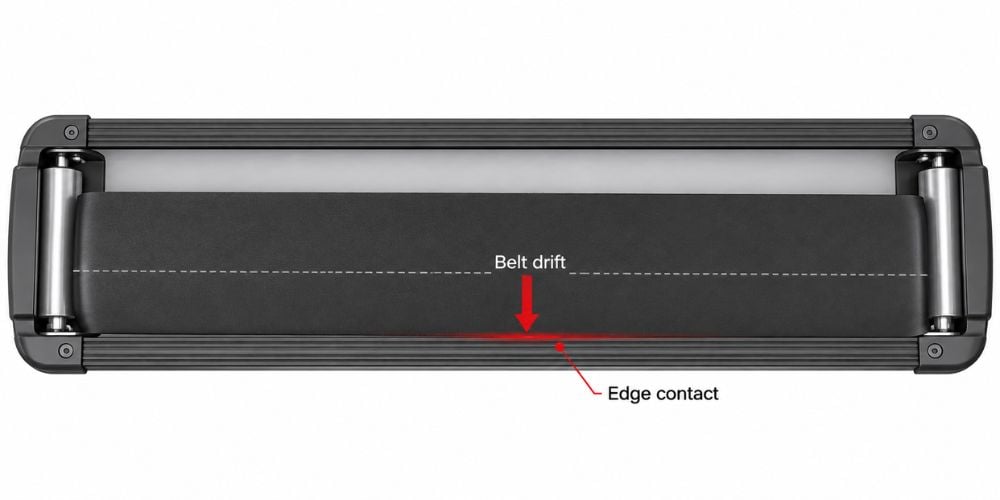

3. The Walking Belt Is Misaligned
The walking belt should stay close to the center of the treadmill deck.
If it drifts too far left or right, the edge can rub against the side rail, roller area, or another component. That contact may create a tapping, rubbing, or knocking sound.
Run the treadmill slowly and watch the belt.
Does it continually move toward one side? If so, alignment may be the problem.
Proper belt centering is a normal part of treadmill maintenance. Horizon Fitness provides a detailed running belt tensioning and centering guide and warns that over-tightening can cause excessive wear on the treadmill and its components.
Make small adjustments rather than turning the adjustment bolts a long way at once.

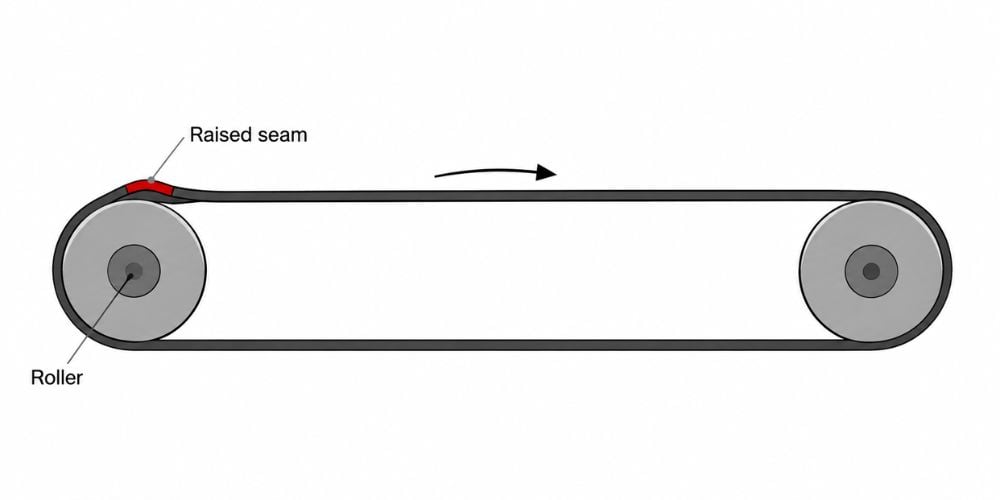

4. The Walking Belt Has a Damaged Seam
The walking belt itself may be creating the noise.
Most treadmill belts have a point where the belt material joins together. If this area becomes raised, damaged, or uneven, it may hit a roller whenever it passes.
The pattern may sound something like:
Knock → belt rotates → knock again.
Check the belt for:
- Raised edges
- Cracks
- Torn material
- Bulges
- Separation around the seam
Here is why timing matters. If the knock happens at almost exactly the same point during every full belt rotation, inspect the belt surface carefully.
If the belt is visibly damaged, replacing it is usually a better option than continuing to train on it.
If your treadmill has more than one worn component and repairs keep adding up, replacing the machine may make more sense than fixing one part at a time. We design commercial treadmills for regular training use, and you can explore our treadmill range here.
5. Loose Bolts or Frame Parts
Running creates vibration throughout the treadmill.
Over time, a bolt, motor cover, handrail, side rail, or frame component can loosen slightly. Two parts may then knock against each other as the machine moves.
Check accessible areas such as:
- Handrail bolts
- Console supports
- Motor covers
- Side rails
- Rear roller covers
- Frame connection points
Does it only knock when you step on it?
That is a useful clue. If the treadmill sounds fine without you but starts knocking under your weight, loose hardware or frame movement may be involved.
I often see people go straight to the motor when they hear a strange noise. Checking the simple external parts first can save a lot of unnecessary troubleshooting.

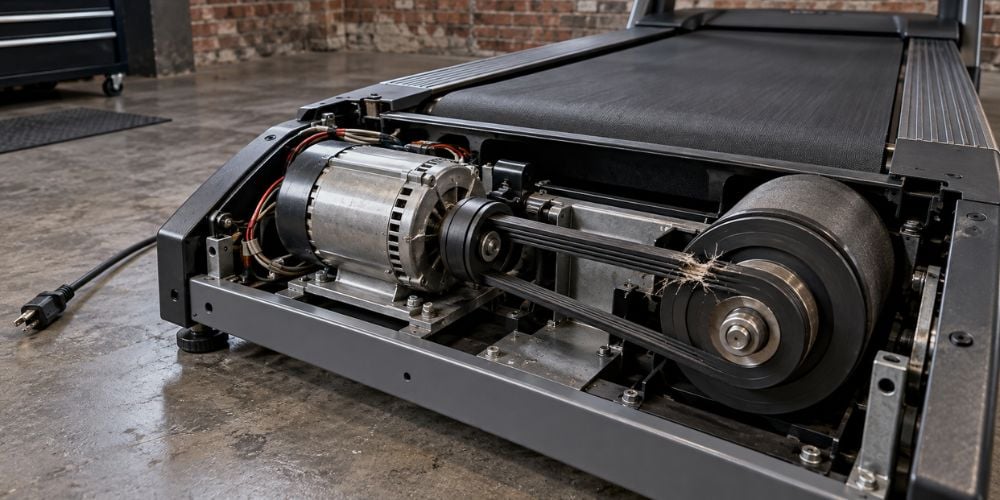

6. A Problem With the Drive Belt or Pulley
Under the front cover is a separate drive belt.
It transfers power from the motor to the front roller. Problems around the drive belt or pulleys can create knocking, clicking, or other repetitive noises.
Possible causes include:
- A loose drive belt
- A damaged drive belt
- A loose pulley
- Poor pulley alignment
- A damaged pulley surface
If the knocking clearly comes from the front motor area, the drive system becomes more likely.
Horizon Fitness recommends checking drive belt alignment and motor components when treadmill belt movement becomes abnormal. Its troubleshooting guidance also notes that a drive belt can come off and motor bearings can seize.
Do not reach into the motor area while the treadmill is connected to power. If removing covers is outside your treadmill’s maintenance instructions, let a qualified technician handle it.

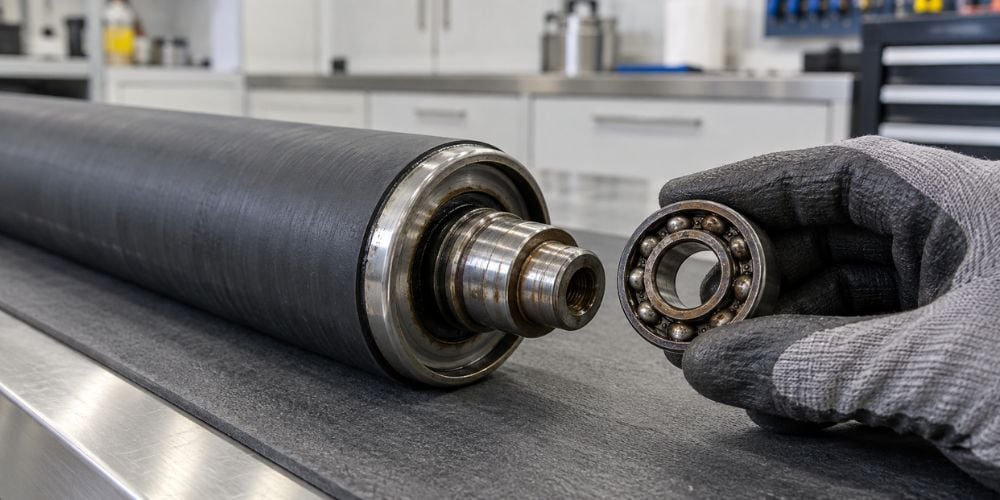

7. Worn Roller or Motor Bearings
Bearings help the rollers and motor rotate smoothly.
As bearings wear, movement can become rough. The sound can vary depending on the damaged part.
You may hear:
- Knocking
- Clicking
- Grinding
- Rumbling
- Squealing
The noise may get faster as treadmill speed increases.
Worn bearings can also cause vibration or resistance as the affected component rotates. This is different from a simple cosmetic rattle because it involves a moving mechanical part.
Conclusion
A knocking treadmill usually comes down to the rollers, trapped debris, belt alignment, belt damage, loose hardware, drive system, or worn bearings. Start with the easy checks before assuming the motor has failed.
Listen to where the sound comes from and whether its rhythm changes with speed. If the belt jerks, slips, vibrates heavily, or the knocking keeps getting worse, stop using the machine until the problem is inspected.
If repeated repairs are making your current treadmill difficult to rely on, YR Fitness offers commercial treadmills built for regular training and long-term use. You can compare our treadmill options here and see whether replacement makes more sense for you.
