Description

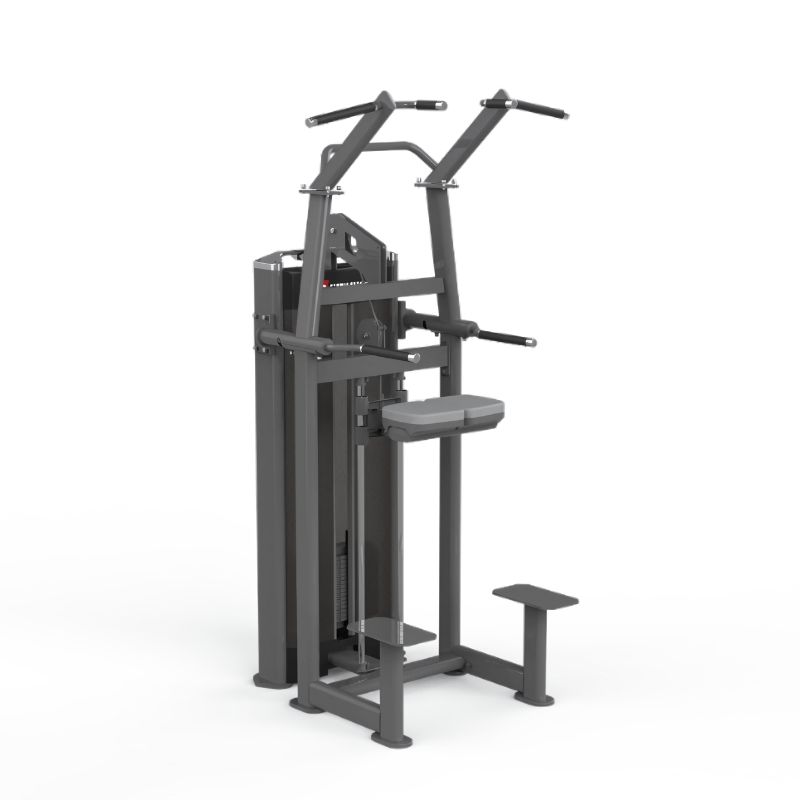

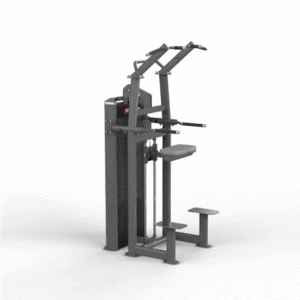

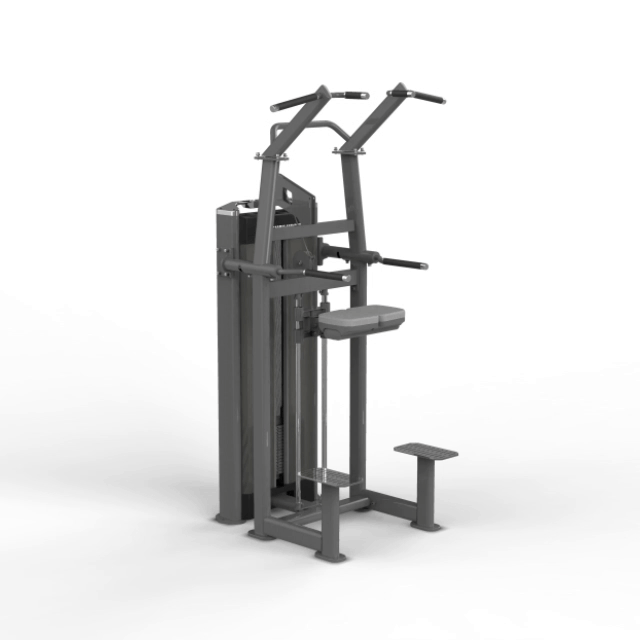

The YR Fitness C416a Knee-on Assisted Chin/Dip is a user-friendly, pin-loaded machine designed to help users build upper body strength. It provides adaptable support with a knee pad that can be used or removed, making it suitable for beginners and advanced users alike. This machine offers a safe and simple way to perform assisted chin-ups and dips.
Strong and Stable Frame Construction
- Main Frame: 150×50×3.0 mm semi-elliptical pipe
- Functional Area Frame: 50×120×3.0 mm flat oval pipe
- Movement Arm: 40×80×3.0 mm pipe
- Joint Pipe: 50×100×3.0 mm flat oval pipe
- Material: All frame components are made from Q235 qualified steel
Comfortable and Protective Design
- Upholstery: High-density foam with furniture-grade PU leather
- Guard Cover: Integral ABS cover for added safety and long-lasting protection
Smooth and Reliable Performance
- Pulley System: Made of POM material, CNC-machined for smooth and durable motion
- Bearings: Customized high-quality bearings built for high-intensity, long-term use
- Cable Routing: Internal cable design keeps the machine organized and clean
- Cable Specifications:
- Japan-made coated wire
- 6×19+1×75 strand construction
- Withstands up to 1400 kg of tensile force
Full Protective Shroud
- Material: 4 mm thick ABS virgin plastic
- Features: Durable, eco-friendly, and provides complete user protection during exercise
Specs:
- N.W.: 223kgs
- G.W.: 235kgs
- Installation size: 1000*1200*2250mm
- Weight stacks: 80kg-16pcs
